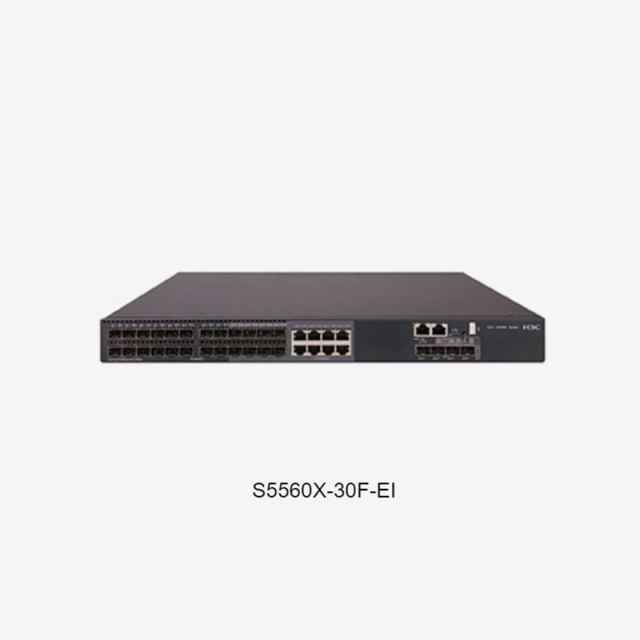

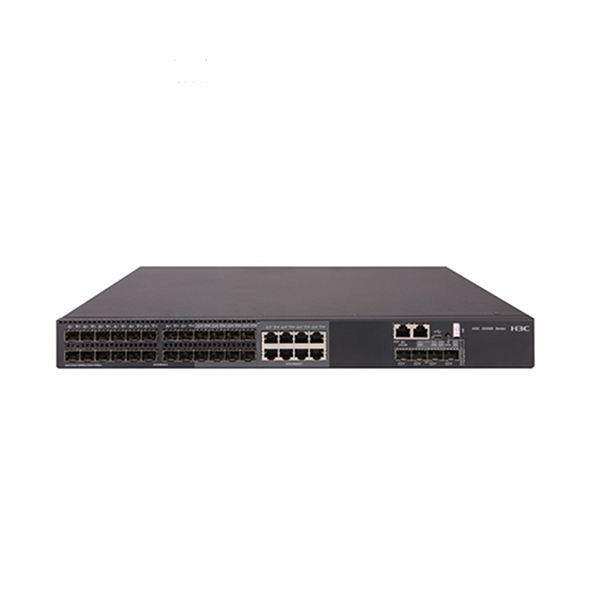

H3C S5560X-30F-EI High-Performance Layer 3 Switch

No.S5560X-30F-EI

Form Factor: 1-Slot Switch
Port Configuration:
- 24 x SFP Slots
- (8 x 10/100/1000BASE-T Combo ports paired with 8 SFP slots)
- 4 x SFP+ Slots (10 Gigabit)
Switch Class: Advanced Layer 3 Managed
Power Supply: Sold Separately / Not Included
- Unified Wired & Wireless: License-based wireless access controller functionality for integrated and locally forwarded networks.
- Management: Embedded SmartMC for simplified network operation and management.
- Resiliency: IRF (Intelligent Resilient Framework) technology for stackable, high-availability systems.
- Advanced Protocols: Support for LACP (Link Aggregation Control Protocol), VLAN, VxLAN, and Macsec.
- Software: Runs on H3C's state-of-the-art Comware 7 operating system.

Get The Latest Quote

Add to Quote List Browse the list

Description
Additional Information
Ordering & Payment Terms

Product Overview

The H3C S5560X-30F-EI is a high-performance, intelligent, and scalable Gigabit Ethernet Layer 3 switch, ideal for enterprise access or small-to-medium business core networks. It combines a robust hardware architecture with the advanced Comware 7 operating system, offering a comprehensive feature set for modern network demands, including seamless wired and wireless integration.

Detailed Specifications

Brand & Model: H3C S5560X-30F-EI
Product Name: S5560X-30F-EI 24 Gigabit optical ports, 4x 10 Gigabit ports, Layer 3 Switch

Port Configuration & Data Rates

Fixed Ports: 24 x Gigabit SFP (optical) ports
Fixed Uplinks: 4 x 10 Gigabit SFP+ ports
Transmission Rate: 10/100/1000Mbps auto-sensing
Communication Mode: Full-Duplex & Half-Duplex
Expansion Slot: 1 slot, supporting optional interface cards for additional Gigabit, 10GE, 25GE, 40GE, or Multi-Giga connectivity.

Performance

Switch Capacity: 598 Gbps / 5.98 Tbps
Packet Forwarding Rate: 216 Mpps
Stacking Bandwidth: Maximum of 160 Gbps

Hardware & Design

Dimensions (H x W x D): 43.6 x 440 x 360 mm (1.72 x 17.32 x 14.17 in)
Weight: ≤ 6.6 kg (14.55 lb)
Memory: 512MB Flash / 2GB SDRAM
Power & Cooling: Modular dual power supply and dual fan design for enhanced reliability.
Management Port: 1 x Management Ethernet port.

Applications
As an access layer device, it provides high-density Gigabit connections for desktop users. It can also serve as a core switch for small-to-medium enterprises or aggregate traffic from downstream switches in Metropolitan Area Network (MAN) and industrial network scenarios.

Item	S5560X-30C-EI	S5560X-54C-EI	S5560X-30F-EI	S5560X-54F-EI	S5560X-30F-EIF
Port Switching capacity	288Gbps	336Gbps	288Gbps	336Gbps	288Gbps
Box Switching capacity	598Gbps/5.98Tbps
Packet forwarding rate	216 Mpps	252 Mpps	216 Mpps	252 Mpps	216 Mpps
Dimensions (H × W × D)	43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)	43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)	43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)	43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)	43.6 × 440 × 220 mm (1.72 × 17.32 × 8.66 in)
Weight	≤ 6.7 kg (14.77 lb)	≤ 7.0 kg (15.43 lb)	≤ 6.6 kg (14.55 lb)	≤ 6.7 kg (14.77 lb)	≤ 3.2 kg (7.05 lb)
Flash/SDRAM	512MB/2GB
Management Ethernet ports	1
Console ports	1 × RJ-45 console port 1 × Micro-USB console port Only the Micro-USB console port is available when you connect both ports.
Service ports	24 × 10/100/1000Base-T autosensing Ethernet ports (including 8 combo interfaces) 4 × 10G SFP+ ports	48 × 10/100/1000Base-T autosensing Ethernet ports 4 × 10G SFP+ ports	24 × SFP ports (including 8 combo interfaces) 4 × 10G SFP+ ports	48 × SFP ports 4 × 10G SFP+ ports	24 × SFP ports (including 8 combo interfaces) 4 × 10G SFP+ ports 2 x 40G QSFP+ ports
